Bosch Serie 4 60cm Pyramid Hood | DWQ66DM50B


Key performance features:
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15 cm: max. Normal use 410 m³/h Intensive 644 m³/h
  • Noise max. Normal Level: 62 dB*
Features
  • TouchControl with Electronic display
  • Electronic display
  • 3 power levels & intensive setting
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)

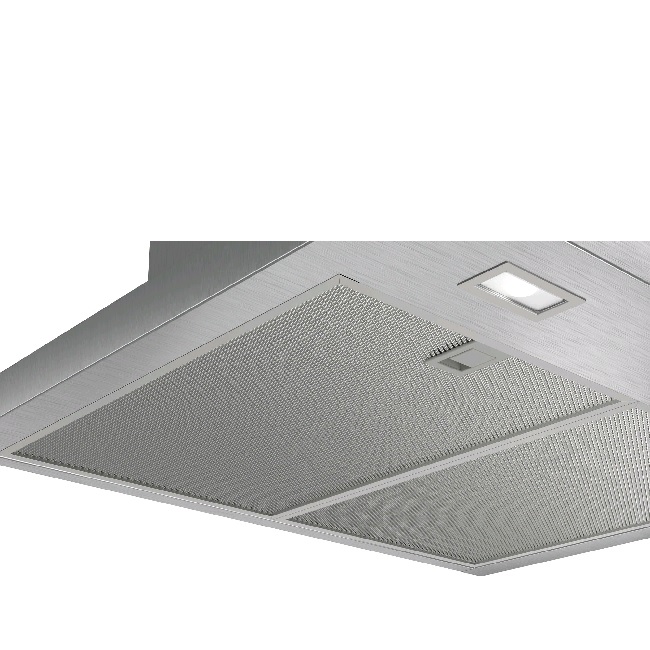

  • 2 metal grease filter cassettes
  • Designed for wall mounted installation
Design
  • Chimney extractor hood
  • TouchControl
  • Electronic control
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Max. extraction rate: 644 m3/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air: Max. normal use: 62 dB(A) re 1 pW Intensive: 70 dB(A) re 1 pW
  • Power rating: 220 W
  • Light Intensity: 242 lux
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

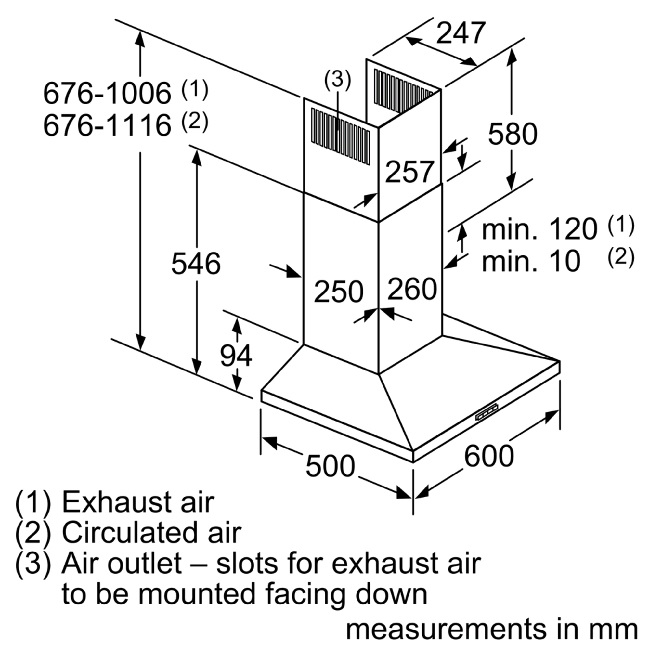

  • Dimensions exhaust air (HxWxD): 676-1006 x 600 x 500 mm
  • Dimensions recirculating (HxWxD): 676-1116 x 600 x 500 mm
  • With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches: Extraction rate in recirculation mode: Max. normal use: 337 m³/h Intensive: 441 m³/h Noise level in recirculation mode: Max. normal use: 70 dB(A) re 1 pW Intensive: 74 dB(A) re 1 pW
  • Dimensions recirculating with CleanAir module (HxWxD): 744 x 600 x 500 mm - mounting with outer chimney 874-1204 x 600 x 500 mm - mounting with telescopic chimney
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 41.7 kWh/year*

Key performance features:
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15 cm: max. Normal use 410 m³/h Intensive 644 m³/h
  • Noise max. Normal Level: 62 dB*
Features
  • TouchControl with Electronic display
  • Electronic display
  • 3 power levels & intensive setting
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)
  • 2 metal grease filter cassettes
  • Designed for wall mounted installation
Design
  • Chimney extractor hood
  • TouchControl
  • Electronic control
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Max. extraction rate: 644 m3/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air: Max. normal use: 62 dB(A) re 1 pW Intensive: 70 dB(A) re 1 pW
  • Power rating: 220 W
  • Light Intensity: 242 lux
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 676-1006 x 600 x 500 mm
  • Dimensions recirculating (HxWxD): 676-1116 x 600 x 500 mm
  • With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches: Extraction rate in recirculation mode: Max. normal use: 337 m³/h Intensive: 441 m³/h Noise level in recirculation mode: Max. normal use: 70 dB(A) re 1 pW Intensive: 74 dB(A) re 1 pW
  • Dimensions recirculating with CleanAir module (HxWxD): 744 x 600 x 500 mm - mounting with outer chimney 874-1204 x 600 x 500 mm - mounting with telescopic chimney
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 41.7 kWh/year*
