Extractor Hob

Siemens iQ500 80cm InductionAir Venting Hob Black Glass | ED851FQ15E esign 3 sided bevelled frameless finish 80 cm: space for 4 pots or pans. Flexibility of cooking zones 2 Combi zones : use bigger cookware by connecting two classic cooking zones into one large zone. Cooking zone front left: 190 mm, 210 mm, 2.2 KW (max. power 3.7 KW) Cooking zone rear left: 190 mm, 210 mm, 2.2 KW (max. power 3.7 KW) Cooking zone rear right: 190 mm, 210 mm , 2.2 KW (max power 3.7 KW) Cooking zone front right: 190 mm, 210 mm, 2.2 KW (max. power 3.7 KW) Usage convenience touchSlider control: directly control the power with the imprinted touch bar. 17 power levels: precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels). Timer for all zones : switches off the cooking zone at the end of the time set (e.g. for boiled eggs). Acoustic Signal : an alarm sounds at the end of the time set (e.g. for pasta). Time saving & efficiency Power boost setting : boil water faster thanks to 50% more energy than at the highest standard level. 2-steps: increase or decrease the power level simply by moving the pot forwards or backwards. quickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off). reStart function: in case of unintentional switch-off, this feature restores all previous settings by switching on the hob again within 4 seconds Safety 2 stage residual heat indicators: indicates which cooking zones are still hot or warm. Control panel lock: prevent unintended activation of the hob. Control panel pause: wipe overboiled liquids without unintentionally changing settings (blocking all touch buttons for 30 seconds). Main on/off switch: switch off all cooking zones at the touch of a button. Automatic safety switch off: for safety reasons, heating stops after a preset time if not used (possible to customise). Energy Consumption Display: shows the electricity consumption of the last cooking process. Installation Dimensions of the product (HxWxD mm): 223 x 802 x 522 Required niche size for installation (HxWxD mm) : 223 x 750 x (490 - 490) Min. worktop thickness: 16 mm Connected load: 7.4 KW Connection current management (20, 16, 13, 10 Amps options): limit the maximum power if needed (depends on fuse protection of electric installation). Power cord: 1.1 m, Cable included in packaging Integrated ventilation downdraft system Induction cooktop with fully integrated high-performance downdraft extractor. Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Respective mandatory installation accessories required: - HZ9VEDU0 for ducted extraction. - Starter kit HZ9VRUD0 for unducted recirculation with cleanAir odour filters. - HZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. - HZ9VEDU0 for ducted extraction. - HZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. Starter kit HZ9VRUD0 for unducted recirculation with cleanAir odour filters. Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware. Ventilation system with 9 electronically controlled fan power levels and 2 Boost-/Intensive fan power levels (with automatic revert) via touchSlider control user interface: - Automatic switch-on of ventilation system when a cooking zone is used. - Automatic delayed shut-off after cooking to erase residual odors after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually). - Fully manual control possible via touchSlider control. - Automatic switch-on of ventilation system when a cooking zone is used. - Automatic delayed shut-off after cooking to erase residual odours after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually). - Fully manual control possible via touchSlider control. High-performance, low-noise motor with energy-efficient BLDC-technology. High extraction rates at very low noises with pleasant noise frequencies through psycho-acoustically and aerodynamically optimised interior with enclosed, hidden motor. Highly pressure-drop resistant even with longer and more complex ducting systems. Easy-to-detach and easy-to-clean grease filter and liquid collector unit: - Convenient one-hand removal of unit via floating glass ceramics handle. - Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %. - All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant. - (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate. - Powerful drainage system for spillages that exceed 200ml of liquids. - Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below. - Overall capturing capacity of 900ml (200ml + 700ml). - Watertight motor system. - Convenient one-hand removal of unit via floating glass ceramics handle. - Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %. - All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant. - (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate. - Powerful drainage system for spillages that exceed 200ml of liquids. - Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below. - Overall capturing capacity of 900ml (200ml + 700ml). - Watertight motor system. Ventilation system performance: - Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 MQH , max. normal setting 500 MQH, max. Boost-/Intensive setting 622 MQH. - Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 150 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 615 m3/h. - Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB re 1 pW, max. normal setting 69 dB re 1 pW, max. Boost-/Intensive setting 74 dB re 1 pW. - Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW. - Grease filter efficiency (according to EN 61591) 94 %. All performance data is preliminary and based on latest test results with advanced prototypes and will be updated with tests from final products. - Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 622 m3/h . - Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 150 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 615 m3/h. - Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB  re 1 pW, max. normal setting 69 dB  re 1 pW, max. Boost-/Intensive setting 74 dB  re 1 pW. - Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB  re 1 pW, max. normal setting 68 dB  re 1 pW, max. Boost-/Intensive setting 72 dB  re 1 pW. - Grease filter efficiency (according to EN 61591) 94 %. All performance data is preliminary and based on latest test results with advanced prototypes and will be updated with tests from final products. Consumption data and energy efficiency (according to Regulation (EU) No 65/2014): - Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D). - Fluid Dynamic Efficiency: A . - Average energy consumption: 57 . - Grease filtration effciency class: B . - Noise min. normal setting & max. normal setting: 42 dB & 69 dB . - Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D). - Fluid Dynamic Efficiency: A . - Average energy consumption: 57 . - Grease filtration effciency class: B . - Noise min. normal setting & max. normal setting: 42 dB  & 69 dB . 2 x 2 sets of directly integrated, high-performance cleanAir odour filters (in recirculation configuration). - Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). - Large scale filter surface with high odour reduction capabilities. - Lifetime of 360 hours of cooking (non-regenerative). - Low-noise filters with optimised psycho-acoustics. - Easy-to-access and easy-to-remove from above. - Replenishment cleanAir filter set HZ9VRCR0. For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics. - Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). - Large scale filter surface with high odour reduction capabilities. - Lifetime of 360 hours of cooking (non-regenerative). - Low-noise filters with optimised psycho-acoustics. - Easy-to-access and easy-to-remove from above. - Replenishment cleanAir filter set HZ9VRCR0. For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics. Planning & installation notes Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Respective mandatory installation accessories required: - HZ9VEDU0 for ducted extraction. - Starter kit HZ9VRUD0 for unducted recirculation with cleanAir odour filters. - HZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. - HZ9VEDU0 for ducted extraction. - HZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. Starter kit HZ9VRUD0 for unducted recirculation with cleanAir odour filters. Planning suggestions: - Installation is possible in island as well as wall oriented configurations. - The product complies with the Needle Flame Test (according to IEC 60695-5-11), the V2 flammability class (according to UL94) and the B1 building material class (DIN 4102-1). The starter kit HZ9VRUD0 for unducted recirculation complies with these standards as well. - The max. immersion depth is 223mm below glass for top mounted appliances and 227mm for flush installed appliances. - The appliance must be freely accessible from below (i.e. for accessing the lower liquid safety collector). - No false floor is necessary below the cooktop with integrated downdraft ventilation system. The drawers and/or shelves in the floor unit must be removable. The backpanel of the floor unit can be kept - only a cut-out for the air outlet is needed (position and size can be taken from the installation instructions). - The "Plug 'n Play" starter kit HZ9VRUD0 for unducted recirculation requires a vertical aperture of min. 25mm behind the backpanel of the furniture. Suggested for ideal performance are 50mm. - The minimum worktop thickness is 16mm for top mounted and flush installed appliances with the standard installation system. Installation in even thinner worktops is also possible with the spare part: content 626792. - The overall appliance weight is 26kg - the bearing capacity and stability, in the case of very thin worktops in particular, must be supported using suitable substructures. The overall appliance weight and the worktop manufacturer's structural integrity specifications are to be taken into account. - The "Plug 'n Play" starter kit HZ9VRUD0 for unducted recirculation enables easy and quick installations and can be planned in all worktop depths ≥60cm. For ducted installations - in ducted extraction (HZ9VEDU0) as well as fully or partly ducted recirculation (HZ9VRPD0) - a worktop depth of ≥70cm is required. - For partly ducted and unducted recirculation extraction installations, a return-flow aperture of ≥400cm² is to be respected in the plinth area. The aperture can be realized via outlet grids, lamella grids or subtly shortened plinths depending on the assortment of the kitchen furniture manufacturer. - The air outlet on the backside of the appliance can directly be accessed with a male flat duct element (DN 150). - The pressuredrop resistant blower allows longer and more complex ductings up to 8m with three 90° bows while keeping sufficient performance. - When installing a ventilation hood with ducted extraction and a chimney-vented fireplace, the power supply line of the appliance needs a suitable safety switch. This is not required for configurations in recirculated extraction. -  In ducted extraction configuration a one-way flap (or backflow trap) with a maximum opening pressure of 65Pa should be installed. - Installation is possible in island as well as wall oriented configurations. - The product complies with the Needle Flame Test (according to IEC 60695-5-11), the V2 flammability class (according to UL94) and the B1 building material class (DIN 4102-1). The starter kit HZ9VRUD0 for unducted recirculation complies with these standards as well. - The max. immersion depth is 223mm below glass for top mounted appliances and 227mm for flush installed appliances. - The appliance must be freely accessible from below (i.e. for accessing the lower liquid safety collector). - No false floor is necessary below the cooktop with integrated downdraft ventilation system. The drawers and/or shelves in the floor unit must be removable. The backpanel of the floor unit can be kept - only a cut-out for the air outlet is needed (position and size can be taken from the installation instructions). - The "Plug 'n Play" starter kit HZ9VRUD0 for unducted recirculation requires a vertical aperture of min. 25mm behind the backpanel of the furniture. Suggested for ideal performance are 50mm. - The minimum worktop thickness is 16mm for top mounted and flush installed appliances with the standard installation system. Installation in even thinner worktops is also possible with the spare part: content 626792. - The overall appliance weight is 26kg - the bearing capacity and stability, in the case of very thin worktops in particular, must be supported using suitable substructures. The overall appliance weight and the worktop manufacturer's structural integrity specifications are to be taken into account. - The "Plug 'n Play" starter kit HZ9VRUD0 for unducted recirculation enables easy and quick installations and can be planned in all worktop depths ≥60cm. For ducted installations - in ducted extraction (HZ9VEDU0) as well as fully or partly ducted recirculation (HZ9VRPD0) - a worktop depth of ≥70cm is required. - For partly ducted and unducted recirculation extraction installations, a return-flow aperture of ≥400cm² is to be respected in the plinth area. The aperture can be realized via outlet grids, lamella grids or subtly shortened plinths depending on the assortment of the kitchen furniture manufacturer. - The air outlet on the backside of the appliance can directly be accessed with a male flat duct element (DN 150). - The pressuredrop resistant blower allows longer and more complex ductings up to 8m with three 90° elbows while keeping sufficient performance. - When installing a ventilation hood with ducted extraction and a chimney-vented fireplace, the power supply line of the appliance needs a suitable safety switch. This is not required for configurations in recirculated extraction. -  In ducted extraction configuration a one-way flap (or backflow trap) with a maximum opening pressure of 65Pa should be installed.

Whirlpool 83cm 4 Zone Induction with integrated Venting | WVH 92 K F KIT   This Whirlpool induction glass-ceramic venting cooktop features: an elegant technology, that heats the pan, not the venting cooktop, reducing energy dispersion and providing perfect cooking results. 4 induction rings. Intuitive slider, for effortless control of your appliance settings. DIMENSIONS HEIGHT 223 WIDTH 830 DEPTH 515 DEPTH_NICHE_SIZE 492 WIDTH_NICHE_SIZE_MAX 807 WIDTH_NICHE_SIZE_MIN 807 STRUCTURAL FEATURES INDUCTION_PLATES_NUMBER 4 TIMER Yes CONTROL_PANEL_LOCATION Front EAN 8003437623394 CONSTR_TYPE Built-in CONTROL_TYPE Electronic CORD_LGTH 150 CURRENT 32 INDICATOR_POWER_ON Yes INDICATOR_RESIDUAL_HEAT Separate SWITCH_MAIN_ONOFF Yes

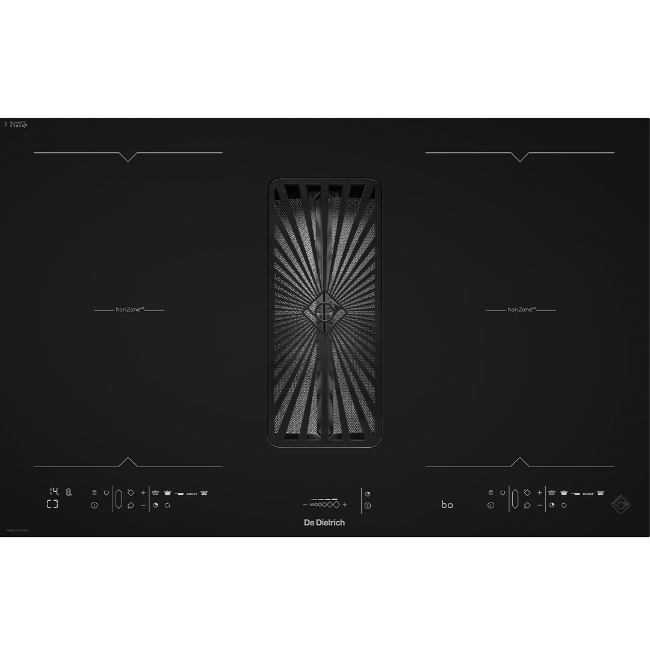

DeDietrich 80cm Four Zone Venting Induction Hob Code | DPI7888BH NEW Double Horizone hob with central extraction. Horizone allows the user to cook on 2 single zones or one large zone. Allowing the user to place larger than normal pots on the hob. Residual heat indicator. Duct-out or recirculation modes. Big 2L anti-overflow safety tank. Boil function lets you know when the pan is boiling. Switch from one zone to another. Grease charcoal filters included. 3 Years Warranty. Dimensions (mm): H898 x W800 x D515.

Elica NIKOLATESLA Prime Extractor Induction Hob Black Air Recycle | NIKOPRIMERECYCLB NikolaTesla Prime is the induction hob with integrated extraction, made unique by its refined balance between aesthetic and functional details. The modern industrial style makes NikolaTesla PRIME a unique and recognizable product, refined materials and lines have been designed to embellish but also to make cooking time more comfortable. Four independent cooking zones are hidden by the black tempered glass, in the center the elegant and robust grill conceals the powerful suction area that can be used also in automatic mode through Autocapture technology. The choice of a resistant material such as cast iron enables a second use of the area which, in moments of non-aspiration, can become a practical support for pots, even hot or for any object. Grease and high performance regenerable odor filters can be removed from the top without any effort, in the same way it is possible to access inner part to clean from accidentally leak out of the pots. In addition a special valve allows the discharge of any spilled liquid, to ensure maximum hygiene to your kitchen. SIZE 83x51x21 cm VERSION Recycling FINISHES Black Glass + Cast Iron CONTROLS 3S+2B Touch control NOISE LEVEL 71 db(A) Recycling TOTAL ABSORPTION ASPIRATION SYSTEM 310 W DUCT SIZE 150 mm TOTAL ABSORPTION - INDUCTION HOB 7,4 kW VOLTAGE 220 - 240 V COOKING AREAS 2 (1,2 - 1,4 kW) - Ø 160 mm; 2 (2,3 - 3 kW) - Ø 200 mm BOOSTER AIRFLOW 422 m³/h Recycling Notes/Other Grease aluminium Filter included. Charcoal fibre filter included.(*) Model not subject to compulsory energy certification.(*)   Technical Drawing

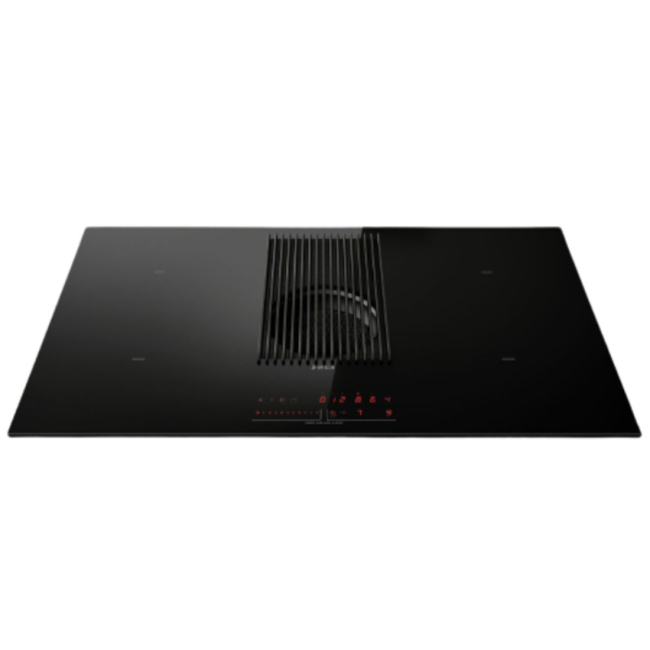

Elica NIKOLATESLA Prime Extractor Induction Hob Black Duct Out | NIKOPRIMEDUCTBL NikolaTesla Prime is the induction hob with integrated extraction, made unique by its refined balance between aesthetic and functional details. The modern industrial style makes NikolaTesla PRIME a unique and recognizable product, refined materials and lines have been designed to embellish but also to make cooking time more comfortable. Four independent cooking zones are hidden by the black tempered glass, in the center the elegant and robust grill conceals the powerful suction area that can be used also in automatic mode through Autocapture technology. The choice of a resistant material such as cast iron enables a second use of the area which, in moments of non-aspiration, can become a practical support for pots, even hot or for any object. Grease and high performance regenerable odor filters can be removed from the top without any effort, in the same way it is possible to access inner part to clean from accidentally leak out of the pots. In addition a special valve allows the discharge of any spilled liquid, to ensure maximum hygiene to your kitchen. SIZE 83x51x21 cm VERSION Duct Out FINISHES Black Glass + Cast Iron CONTROLS 3S+2B Touch control NOISE LEVEL 61 db(A) Duct Out TOTAL ABSORPTION ASPIRATION SYSTEM 310 W DUCT SIZE 150 mm ENERGY CLASS A (Duct Out version) TOTAL ABSORPTION - INDUCTION HOB 7,4 kW VOLTAGE 220 - 240 V COOKING AREAS 2 (1,2 - 1,4 kW) - Ø 160 mm; 2 (2,3 - 3 kW) - Ø 200 mm BOOSTER AIRFLOW 610 m³/h Duct out Notes/Other Grease aluminium Filter included. Charcoal fibre filter included.(*) Model not subject to compulsory energy certification.(*) Notes/Other Grease aluminium Filter included. Charcoal fibre filter included.(*) Model not subject to compulsory energy certification.(*)   Technical Drawing

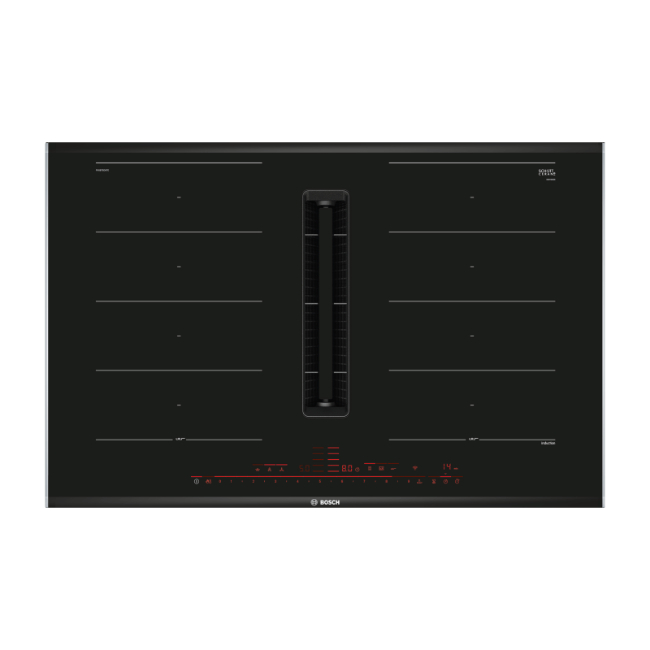

Bosch Serie 8 80cm Venting Hob Black Glass | PXX875D67E Design Profile trim (front facette with side trim) 80 cm: space for 4 pots or pans. Flexibility of cooking zones 2 Flex zones: use cookware of any shape or size anywhere within the 40cm long zone. Cooking zone front left: 200 mm, 240 mm, 2.2 KW (max. power 3.7 KW) Cooking zone rear left: 200 mm, 240 mm, 2.2 KW (max. power 3.7 KW) Cooking zone rear right: 200 mm, 240 mm , 2.2 KW (max power 3.7 KW) Cooking zone front right: 200 mm, 240 mm, 2.2 KW (max. power 3.7 KW) Usage convenience DirectSelect Premium touch control: directly control the power on the extra large illuminated touch bar (invisible when switched off). Variable 17-stage power settings for each zone: precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels). Keep warm function: keep dishes warm at preset low power level. Timer for all zones: switches off the cooking zone at the end of the time set (e.g. for boiled eggs). Timer - shows how long the cooktop is in use: an alarm sounds at the end of the time set (e.g. for pasta). Count up timer per cooktop: shows how much time has passed since starting the timer (e.g. for potatoes). Time saving & efficiency PowerBoost function for all zones: boil water faster thanks to 50% more energy than at the highest standard level. PanBoost: heat up pans faster than at the highest standard level while protecting the pan coating. Cooking zones will be automatically joined or separated based on the shape and size of the cookware placed. MoveMode (3 levels): increase or decrease the power level simply by moving the pot forwards or backwards. Automatic setting transfer: when moving a pot to a different cooking zone, this feature transfers all previous settings to the new zone at the touch of a button. QuickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off). ReStart function: in case of unintentional switch-off, this feature restores all previous settings by switching on the hob again within 4 seconds Cooking assistance PerfectCook sensor ready (sensor sold seperately): prevents overboiling of pots with the automatic temperature regulation of the sensor (attached to the pot). 5 frying and 5 cooking levels: prevents overcooking with the automatic temperature regulation of the integrated sensor. Dish assistant: easily find the right temperature setting for a certain dish via the home connect app. Connectivity Home Connect enabled: check if the hob is switched off even when not at home, and find recipes or additional functions in the Home Connect app. Safety 2 stage residual heat indicator for each zone: indicates which cooking zones are still hot or warm. Control panel lock: prevent unintended activation of the hob. Freeze function: wipe overboiled liquids without unintentionally changing settings (blocking all touch buttons for 30 seconds). Main on/off switch: switch off all cooking zones at the touch of a button. Safety cut-out switch-off: for safety reasons, heating stops after a preset time if not used (possible to customise). Energy consumption display: shows the electricity consumption of the last cooking process. Installation Dimensions of the product (HxWxD mm): 223 x 816 x 527 Required niche size for installation (HxWxD mm) : 223 x 750 x (490 - 490) Min. worktop thickness: 16 mm Connected load: 7.4 KW Power management options for 16A, 13A or 10A connection: limit the maximum power if needed (depends on fuse protection of electric installation). Power cord: 1.1 m, Cable included Integrated ventilation downdraft system Induction cooktop with fully integrated high-performance downdraft extractor. Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Respective mandatory installation acessories required:- HEZ9VEDU0 for ducted extraction - Starter kit HEZ9VRUD0 for unducted recirculation with cleanAir odour filters. - HEZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. - HEZ9VEDU0 for ducted extraction - HEZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. Starter kit  HEZ9VRUD0 for unducted recirculation with cleanAir odour filters. Ventilation system with 17 electronically controlled fan power levels and 2 Boost-/Intensive fan power levels (with automatic revert) via DirectSelect Premium touch control user interface. Sensor-based, smart, fully automatic mode of ventilation system:- Automatic switch-on of ventilation system when a cooking zone is used. - Sensor-based and cooktop-based, fully-automatic adjustment of power levels via advanced algorithm for maximum convenience. - 3 possible sensitivity modes of algorithm for maximum convenience (Low-noise oriented, balanced, performance-oriented). - Automatic delayed shut-off after cooking to erase residual odors after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually). - Manual control possible via DirectSelect Premium touch control. - Automatic switch-on of ventilation system when a cooking zone is used. - Sensor-based and cooktop-based, fully-automatic adjustment of power levels via advanced algorithm for maximum convenience. - 3 possible sensitivity modes of algorithm for maximum convenience (Low-noise oriented, balanced, performance-oriented). Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware. - Automatic delayed shut-off after cooking to erase residual odours after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually). - Manual control possible via DirectSelect Premium touch control. High-performance, low-noise motor with energy-efficient BLDC-technology. High extraction rates at very low noises with pleasant noise frequencies through psycho-acoustically and aerodynamically optimised interior with enclosed, hidden motor. Highly pressure-drop resistant even with longer and more complex ducting systems. Easy-to-detach and easy-to-clean grease filter and liquid collector unit:- Convenient one-hand removal of unit via floating glass ceramics handle. - Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %. - All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant. - (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate. - Powerful drainage system for spillages that exceed 200ml of liquids. - Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below. - Overall capturing capacity of 900ml (200ml + 700ml). - Watertight motor system. - Convenient one-hand removal of unit via floating glass ceramics handle. - Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %. - All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant. - (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate. - Powerful drainage system for spillages that exceed 200ml of liquids. - Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below. - Overall capturing capacity of 900ml (200ml + 700ml). - Watertight motor system. Ventilation system performance:- Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 MQH , max. normal setting 500 MQH, max. Boost-/Intensive setting 622 MQH. - Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 150 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 615 m3/h. - Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB re 1 pW, max. normal setting 69 dB re 1 pW, max. Boost-/Intensive setting 74 dB re 1 pW. - Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW. - Grease filter efficiency (according to EN 61591) 94 %. All performance data is preliminary and based on latest test results with advanced prototypes and will be updated with tests from final products. - Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 622 m3/h . - Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 150 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 615 m3/h. - Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB  re 1 pW, max. normal setting 69 dB  re 1 pW, max. Boost-/Intensive setting 74 dB  re 1 pW. - Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB  re 1 pW, max. normal setting 68 dB  re 1 pW, max. Boost-/Intensive setting 72 dB  re 1 pW. - Grease filter efficiency (according to EN 61591) 94 %. All performance data is preliminary and based on latest test results with advanced prototypes and will be updated with tests from final products. Consumption data and energy efficiency (according to Regulation (EU) No 65/2014):- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D). - Fluid Dynamic Efficiency: A . - Average energy consumption: 57 . - Grease filtration effciency class: B . - Noise min. normal setting & max. normal setting: 42 dB & 69 dB . - Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D). - Fluid Dynamic Efficiency: A . - Average energy consumption: 57 . - Grease filtration effciency class: B . - Noise min. normal setting & max. normal setting: 42 dB  & 69 dB . 2 x 2 sets of directly integrated, high-performance cleanAir odour filters (in recirculation configuration).- Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). - Large scale filter surface with high odour reduction capabilities. - Lifetime of 360 hours of cooking (non-regenerative). - Low-noise filters with optimised psycho-acoustics. - Easy-to-access and easy-to-remove from above. - Saturation indications for cleanAir odour filter via user interface notification and via the Home Connect app with a convenient replenishment re-order option (replenishment cleanAir filter set HEZ9VRCR0). For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics. - Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). - Large scale filter surface with high odour reduction capabilities. - Lifetime of 360 hours of cooking (non-regenerative). - Low-noise filters with optimised psycho-acoustics. - Easy-to-access and easy-to-remove from above. - Saturation indications for cleanAir odour filter via user interface notification and via the Home Connect app with a convenient replenishment re-order option (replenishment cleanAir filter set HEZ9VRCR0). For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics.

Bosch Serie 6 70cm Venting Hob Black Glass | PVQ731F15E Design Front facette design 70 cm: space for 4 pots or pans. Flexibility of cooking zones 2 Combi zones: use bigger cookware by connecting two classic cooking zones into one large zone. Cooking zone front left: 190 mm, 210 mm, 2.2 KW (max. power 3.7 KW) Cooking zone rear left: 190 mm, 210 mm, 2.2 KW (max. power 3.7 KW) Cooking zone rear right: 190 mm, 210 mm , 2.2 KW (max power 3.7 KW) Cooking zone front right: 190 mm, 210 mm, 2.2 KW (max. power 3.7 KW) Usage convenience DirectSelect: directly control the power with the imprinted touch bar. Variable 17-stage power settings for each zone: precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels). Timer for all zones: switches off the cooking zone at the end of the time set (e.g. for boiled eggs). Timer - shows how long the cooktop is in use: an alarm sounds at the end of the time set (e.g. for pasta). Time saving & efficiency PowerBoost function for all zones: boil water faster thanks to 50% more energy than at the highest standard level. MoveMode (2 levels): increase or decrease the power level simply by moving the pot forwards or backwards. QuickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off). ReStart function: in case of unintentional switch-off, this feature restores all previous settings by switching on the hob again within 4 seconds Safety 2 stage residual heat indicator for each zone: indicates which cooking zones are still hot or warm. Control panel lock: prevent unintended activation of the hob. Freeze function: wipe overboiled liquids without unintentionally changing settings (blocking all touch buttons for 30 seconds). Main on/off switch: switch off all cooking zones at the touch of a button. Safety cut-out switch-off: for safety reasons, heating stops after a preset time if not used (possible to customise). Energy consumption display: shows the electricity consumption of the last cooking process. Installation Dimensions of the product (HxWxD mm): 223 x 710 x 522 Required niche size for installation (HxWxD mm) : 223 x 560 x (490 - 490) Min. worktop thickness: 16 mm Connected load: 7.4 KW Power management options for 16A, 13A or 10A connection: limit the maximum power if needed (depends on fuse protection of electric installation). Power cord: 1.1 m, Cable included Suitable for installation into a 60 cm base cabinet Integrated ventilation downdraft system Induction cooktop with fully integrated high-performance downdraft extractor. Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Respective mandatory installation acessories required:- HEZ9VEDU0 for ducted extraction - Starter kit HEZ9VRUD0 for unducted recirculation with cleanAir odour filters. - HEZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. - HEZ9VEDU0 for ducted extraction - HEZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters. Starter kit  HEZ9VRUD0 for unducted recirculation with cleanAir odour filters. Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware. Ventilation system with 9 electronically controlled fan power levels and 2 Boost-/Intensive fan power levels (with automatic revert) via DirectSelect user interface:- Automatic switch-on of ventilation system when a cooking zone is used. - Automatic delayed shut-off after cooking to erase residual odors after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually). - Fully manual control possible via DirectSelect. - Automatic switch-on of ventilation system when a cooking zone is used. - Automatic delayed shut-off after cooking to erase residual odours after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually). - Fully manual control possible via DirectSelect. High-performance, low-noise motor with energy-efficient BLDC-technology. High extraction rates at very low noises with pleasant noise frequencies through psycho-acoustically and aerodynamically optimised interior with enclosed, hidden motor. Highly pressure-drop resistant even with longer and more complex ducting systems. Easy-to-detach and easy-to-clean grease filter and liquid collector unit:- Convenient one-hand removal of unit via floating glass ceramics handle. - Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %. - All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant. - (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate. - Powerful drainage system for spillages that exceed 200ml of liquids. - Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below. - Overall capturing capacity of 900ml (200ml + 700ml). - Watertight motor system. - Convenient one-hand removal of unit via floating glass ceramics handle. - Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %. - All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant. - (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate. - Powerful drainage system for spillages that exceed 200ml of liquids. - Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below. - Overall capturing capacity of 900ml (200ml + 700ml). - Watertight motor system. Ventilation system performance:- Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 MQH , max. normal setting 500 MQH, max. Boost-/Intensive setting 622 MQH. - Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 150 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 615 m3/h. - Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB re 1 pW, max. normal setting 69 dB re 1 pW, max. Boost-/Intensive setting 74 dB re 1 pW. - Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW. - Grease filter efficiency (according to EN 61591) 94 %. All performance data is preliminary and based on latest test results with advanced prototypes and will be updated with tests from final products. - Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 622 m3/h . - Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 150 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 615 m3/h. - Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB  re 1 pW, max. normal setting 69 dB  re 1 pW, max. Boost-/Intensive setting 74 dB  re 1 pW. - Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB  re 1 pW, max. normal setting 68 dB  re 1 pW, max. Boost-/Intensive setting 72 dB  re 1 pW. - Grease filter efficiency (according to EN 61591) 94 %. All performance data is preliminary and based on latest test results with advanced prototypes and will be updated with tests from final products. Consumption data and energy efficiency (according to Regulation (EU) No 65/2014):- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D). - Fluid Dynamic Efficiency: A . - Average energy consumption: 57 . - Grease filtration effciency class: B . - Noise min. normal setting & max. normal setting: 42 dB & 69 dB . - Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D). - Fluid Dynamic Efficiency: A . - Average energy consumption: 57 . - Grease filtration effciency class: B . - Noise min. normal setting & max. normal setting: 42 dB  & 69 dB . 2 x 2 sets of directly integrated, high-performance cleanAir odour filters (in recirculation configuration).- Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). - Large scale filter surface with high odour reduction capabilities. - Lifetime of 360 hours of cooking (non-regenerative). - Low-noise filters with optimised psycho-acoustics. - Easy-to-access and easy-to-remove from above. - Replenishment cleanAir filter set HEZ9VRCR0. For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics. - Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). - Large scale filter surface with high odour reduction capabilities. - Lifetime of 360 hours of cooking (non-regenerative). - Low-noise filters with optimised psycho-acoustics. - Easy-to-access and easy-to-remove from above. - Replenishment cleanAir filter set HEZ9VRCR0. For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics.
