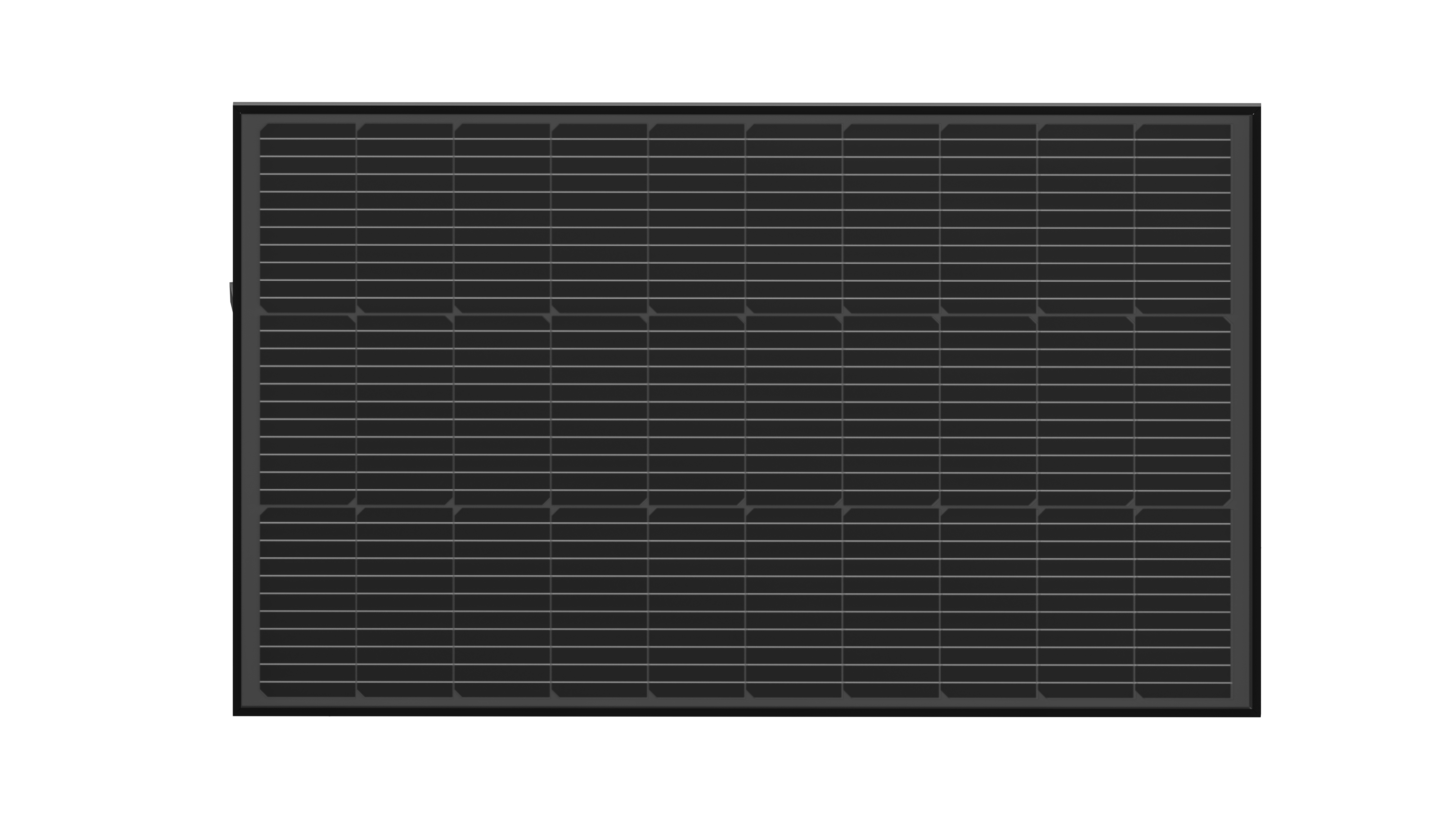

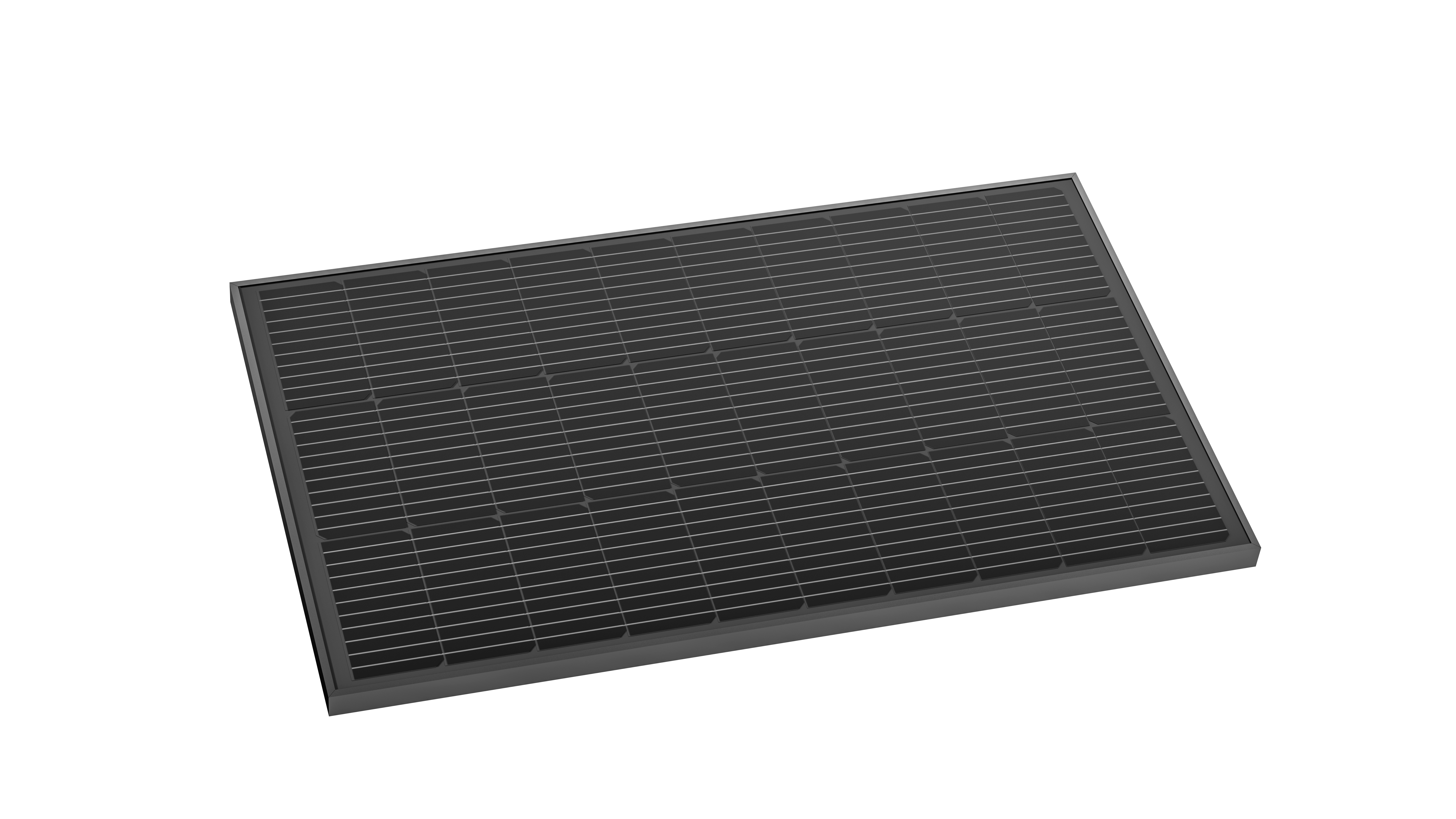

EcoFlow 100w Rigid Solar Panel X2 | ZMS331
EcoFlow 100w Rigid Solar Panel X2 | ZMS331
Features
- A 23% conversion rate to sunlight
- All-black design that fits any house style
- Built to last with an IP68 waterproof rating.
- Fast and Easy Installation
- Up to a 5-year warranty
FASTER CHARGING - HIGH SOLAR CONVERSION
This 100W rigid solar panel has an outstanding conversion rating of 23%, allowing even faster charging. Combine as part of your Power Kits setup or EcoFlow portable power station, and the integrated MPPT algorithm optimizes your solar input.
DESIGN FOR LONG-LASTING PERFORMANCE
Made with a robust anti-corrosive aluminium frame, the 100W rigid solar panel is designed for maintaining solar collection outdoors for years. Its monocrystalline cells are coated with highly protective lamination and tempered glass to boost performance and offer long-lasting durability.
IP68* WATERPROOF RATING
The 100W rigid solar panel is designed for outdoor weather. With an IP68* waterproof rating, the panel can withstand dirt, low-pressure water jets, extreme winds of up to 130 mph, and even heavy snowfalls. *Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
EASIER INSTALLATION

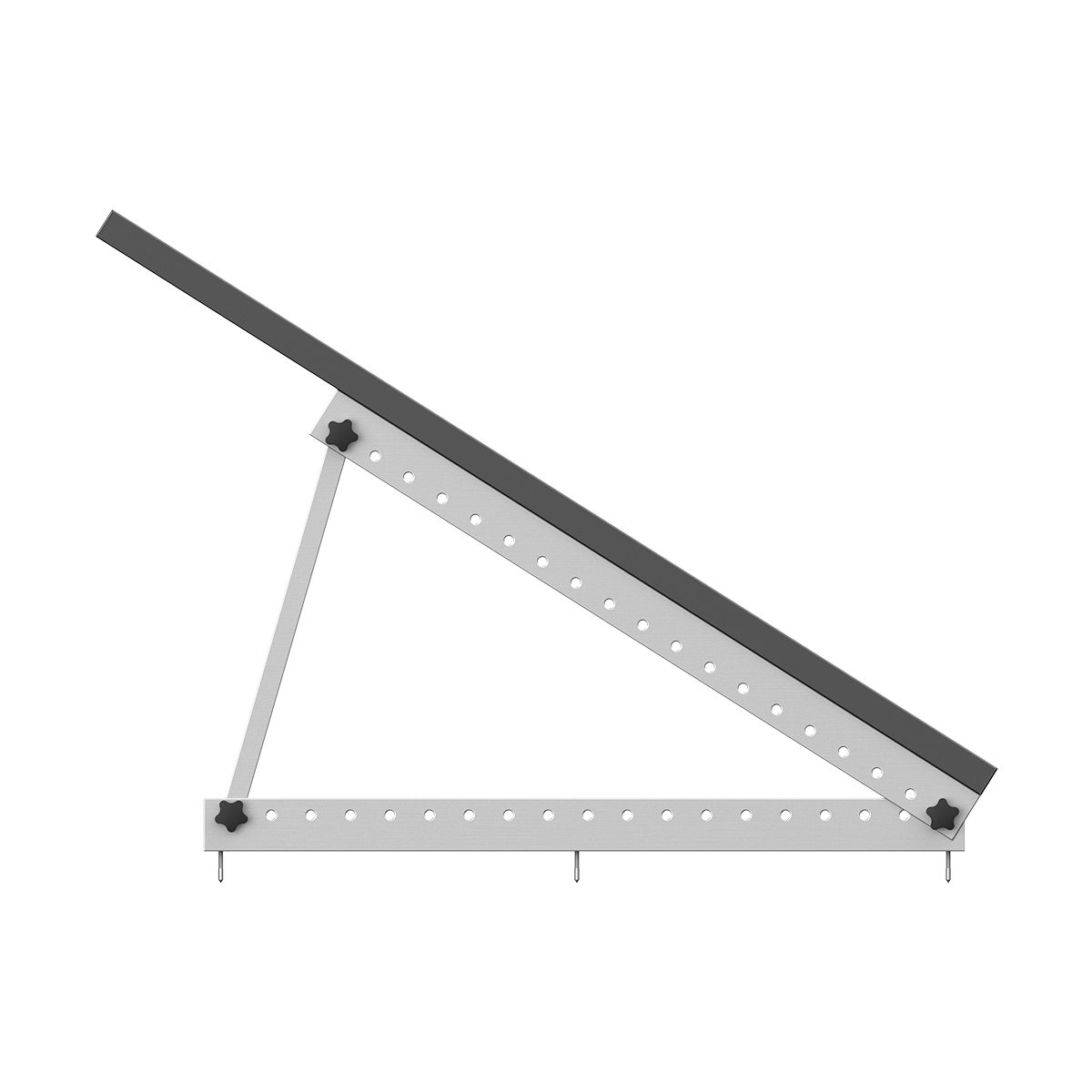

With pre-cut holes on the panel, the 100W rigid panel is ready to mount on your van or off-grid build. Pair with the 100W Rigid Solar Panel Mounting Feet for a secure attachment to any surface.
CONNECT WITH YOUR POWER SYSTEMS
Using an all-inclusive solar connector, the 100W rigid solar panel can be readily connected with any of your existing third-party solar systems. You can charge up 48v power systems and portable power stations with one or multiple panels.
Specification
- Solar Panel Weight: Approx. 6.2 kg（13.7 lbs）
- Dimensions: 98*58.6*3 cm（38.6*23.1*1.2 in）
- Rated Power: 100 W（+/-5W）
- Open Circuit Voltage: 20.3 V
- Short Circuit Current: 6.3 A
- Maximum Operating Voltage: 17.1 V
- Maximum Operating Current: 5.9 A
- Temperature Coefficient of Rated Power: -0.39%/°C
- Temperature Coefficient of Open Circuit Voltage: -0.33%/°C
- Temperature Coefficient of Short Circuit Current: 0.06%/°C
- Maximum System Voltage: 600 VDC（UL）
- Maximum Fuse Current: 15 A
What's in the Box
- x2 100W Rigid Solar Panel
- x2 Mounting feet
- User Manual and Warranty Card
