Fisher & Paykel 90cm Freestanding Dual Fuel Range Cooker OR90SCG6B1
Product number:
FIS-OR90SCG6B1
Classic Style
Get heritage styling and contemporary performance with this 90cm Fisher & Paykel Freestanding Cooker. You can cook several dishes at the same time with its spacious induction cooktop and generously sized, self-cleaning convection oven. Instant heat and precise control add modern functionality to the classic styled black finish.

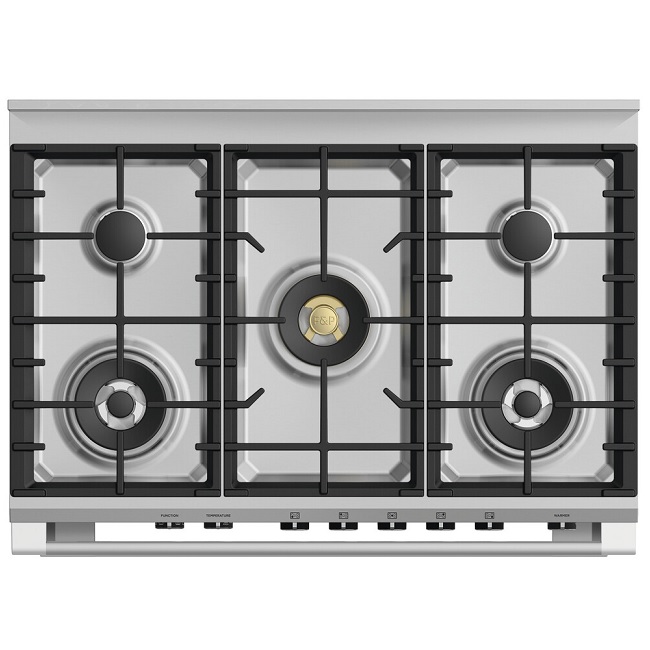

- Gas cooktop with five burners
- Convection oven with 121L capacity and twin fans for even cooking
- Nine oven functions plus rotisserie including Pastry Bake with pizza mode
- Instant heat and precise control cooktop
- Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth
- Safety features include quadruple-glazed CoolTouch door and fully extending sliding shelves
Specifications
Warranty
| Warranty | 5 years |
Cooktop features
| Brass burner spreader (power burner) | • |
| Dishwasher safe trivets | • |
| Embossed brass burner cap (power burner) | • |
| Gas Cooktop- Sealed range top | • |
| Hob rail | • |
| Hob rear trim | 60mm |
| LPG/Natural gas compatible | • |
Oven features
| ActiveVent™ system | • |
| AeroTech technology | • |
| Automatic rapid pre-heat | • |
| Electronic oven control | • |
| Full extension telescopic sliding shelves | 2 sets (part 578744) |
| Internal light | 4 x 25W halogen (2 side & 2 top) |
| Pyrolytic Self-clean | • |
| Pyrolytic proof shelf runners | • |
| Soft open/close door | • |
| True Convection | • |
| Twin cavity fans | • |
| Warming drawer | • |
Installation cutout dimensions
| Depth | 600mm |
| Width | 900mm |
Cooktop performance
| Dual wok burner inner / outer (LPG) | 0.3 - 4.5kW |
| Dual wok burner inner / outer (natural gas) | 0.4 - 4.5kW |
| Max burner power | 4.5kW |
| Number of burners | 5 |
| Semi-rapid burner (LPG) x2 | 0.45 - 1.2kW |
| Semi-rapid burner (natural gas) x2 | 0.45 - 1.75kW |
| Total cooktop power | 14.9kW |
| Triple ring wok burner (LPG) x2 | 1.8 - 4kW |
| Triple ring wok burner (natural gas) x2 | 1.8 - 4kW |
Oven performance
| CoolTouch door | Quadruple glazed |
| Energy rating | A |
| Grill | 4500W |
| Shelf positions | 6 |
| Total oven capacity | 140L |
| Usable capacity | 120L |
| Warming drawer | 202W |
Oven functions
| Bake | • |
| Energy 'Slow Cook' | • |
| Fan Bake | • |
| Fan Forced | • |
| Fan Grill | • |
| Grill | • |
| Number of Functions | 9 + Rotisserie |
| Pastry Bake with Pizza mode | • |
| Pyrolytic Self-clean | • |
| Roast | • |
| Rotisserie | • |
Cleaning
| Acid resistant graphite enamel | • |
| Dishwasher safe trivets | • |
| Drop down grill element | • |
| Pyrolytic Self-clean | • |
| Pyrolytic proof shelf runners | • |
| Removable oven door inner glass | • |
| Removable oven door/s | • |
| Removable shelf runners | • |
Safety
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| CoolTouch door | • |
| Flame failure system | • |
| Full extension telescopic sliding shelves | • |
| Non-tip shelves | • |
| Spill containment | 2.6L |
Controls
| Audio feedback | • |
| Automatic cooking/minute timer | • |
| Automatic pre-set temperatures | • |
| Bright chromed, cast zinc dials with illuminated halos | • |
| Celsius/Fahrenheit temperature | • |
| Electronic clock | • |
| High resolution display | • |
| Interior light | • |
| Laser etched graphics | • |
| Precise electronic temperature control | • |
| Sabbath mode | • |
| Turned stainless steel clock buttons | • |
| Turned stainless steel clock crown (dial) | • |
Power requirements
| AMP draw | 23A |
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240W |
Accessories
| Flat wire shelf | • |
| Full extension sliding shelves | 2 sets (part 578744) |
| Grill rack | • |
| Kick strip, stainless steel (optional) | Part 81661 |
| Pyrolytic proof shelf runners | 1 set |
| Roasting dish | • |
| Rotisserie set | 1 |
| Small pot support | 1 (part 533981 cast) |
| Step down wire shelf | • |
| Wok stand | 1 (part 534678) |
Style And Series
| Product Style | Classic |
