Tp-Link Av1300 3-Port Gigabit Passthrough Wi-Fi Kit | TL-WPA8631P-KIT

Tp-Link Av1300 3-Port Gigabit Passthrough Wi-Fi Kit | TL-WPA8631P-KIT

  • HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps*
  • AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz*
  • EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
  • 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability

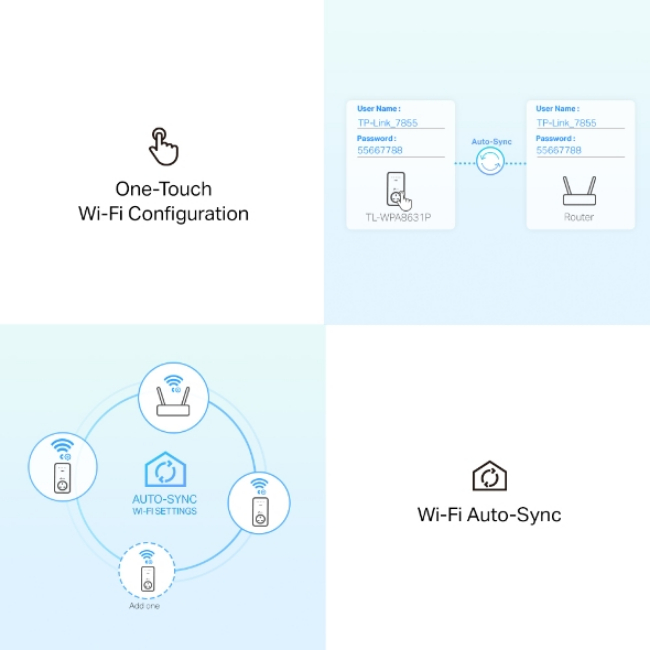

  • One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
  • Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
  • Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
  • Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket
  • 3 × Gigabit Ports - Provide secure wired networks for desktops, smart TVs or games consoles

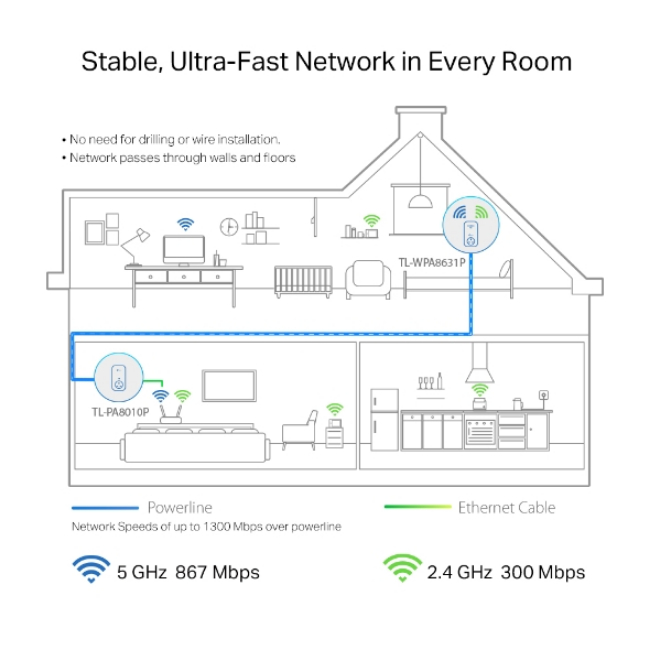

Flexibly Create Whole Home Mesh WiFi
 If you have any dead zones at home, just add another EasyMesh-compatible device to further form your whole home mesh WiFi. No more searching for a stable connection.
Plug and Play in Seconds!
 Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket. That’s it. You’re done! Tip: Press ‘Pair’ for more security.

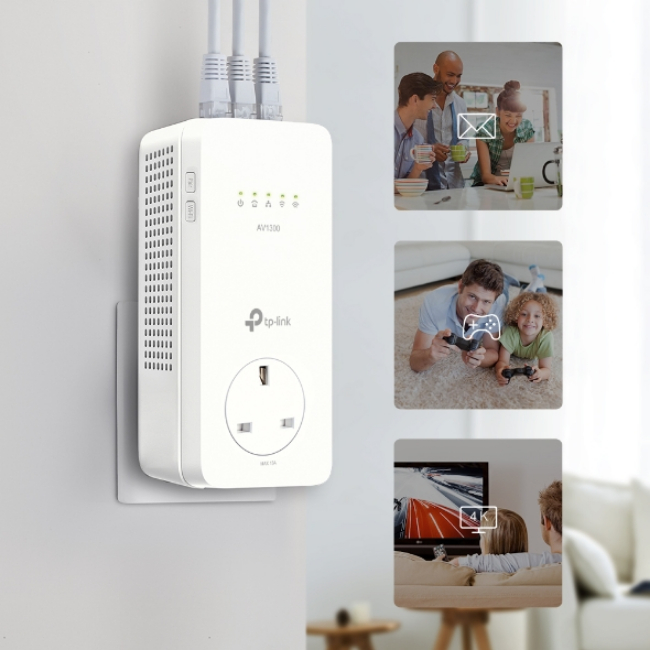

Don’t Lose an Outlet
 The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.
More Gigabit Ethernet Ports, More Devices
 Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video and IPTV streaming, lag-free gaming, and more.

Specification

HARDWARE FEATURES
Transmission SpeedsPowerline: up to 1300 Mbps
Ethernet: 10/100/1000 Mbps
Transmission DistanceUp to 300 meters/1000 feet over existing electrical wiring
Standards and ProtocolsHomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)
CompatibilityCompatible with all HomePlug AV & HomePlug AV2 standard
powerline adapters*
Plug TypeUK
Interface3 Gigabit Ethernet Ports, 1 Power Socket
ButtonPair, LED On/Off, Wi-Fi, Reset
Power ConsumptionTL-WPA8631P: Maximum: 13W, Typical: 11W
TL-PA8010P: Maximum: 4.9W, Typical: 4.6W
LED IndicatorPower, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)
Dimensions ( W x D x H )TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)
TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring*
WIRELESS FEATURES
Wireless Standards• TL-WPA8631P: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
• TL-PA8010P: N/A
Frequency• TL-WPA8631P: 2.4 GHz and 5 GHz
• TL-PA8010P: N/A
Signal Rate• TL-WPA8631P: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
• TL-PA8010P: N/A
SOFTWARE FEATURES
Mesh TechnologyEasyMesh-Compatible
Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.
Learn More>
All EasyMesh Products>
Quality of Service• ToS
• Supports up to 4-level type QoS
• Support up to 8-level VLAN priority field
SecurityWireless: WPA-PSK/WPA2-PSK, WEP Encryptions,
Powerline: 128-bit AES Encryption
ManagementTP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download
Modulation TechnologyOFDM
IGMPIGMP v1/v2/v3
PHYSICAL
Dimensions (W×D×H)• TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)
• TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)
Package Contents• AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P;
• 2× Ethernet Cables;
• 1× Quick Installation Guide
OTHERS
CertificationCE, RoHS
Package ContentsAV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT:
1× TL-WPA8631P, 1× TL-PA8010P;
2× Ethernet Cables;
1× Quick Installation Guide
System RequirementsSystem Requirements:
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing

Tp-Link Av1300 3-Port Gigabit Passthrough Wi-Fi Kit | TL-WPA8631P-KIT

  • HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps*
  • AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz*
  • EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
  • 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
  • One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
  • Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
  • Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
  • Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket
  • 3 × Gigabit Ports - Provide secure wired networks for desktops, smart TVs or games consoles

Flexibly Create Whole Home Mesh WiFi
 If you have any dead zones at home, just add another EasyMesh-compatible device to further form your whole home mesh WiFi. No more searching for a stable connection.
Plug and Play in Seconds!
 Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket. That’s it. You’re done! Tip: Press ‘Pair’ for more security.
Don’t Lose an Outlet
 The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.
More Gigabit Ethernet Ports, More Devices
 Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video and IPTV streaming, lag-free gaming, and more.

Specification

HARDWARE FEATURES
Transmission SpeedsPowerline: up to 1300 Mbps
Ethernet: 10/100/1000 Mbps
Transmission DistanceUp to 300 meters/1000 feet over existing electrical wiring
Standards and ProtocolsHomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)
CompatibilityCompatible with all HomePlug AV & HomePlug AV2 standard
powerline adapters*
Plug TypeUK
Interface3 Gigabit Ethernet Ports, 1 Power Socket
ButtonPair, LED On/Off, Wi-Fi, Reset
Power ConsumptionTL-WPA8631P: Maximum: 13W, Typical: 11W
TL-PA8010P: Maximum: 4.9W, Typical: 4.6W
LED IndicatorPower, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)
Dimensions ( W x D x H )TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)
TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring*
WIRELESS FEATURES
Wireless Standards• TL-WPA8631P: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
• TL-PA8010P: N/A
Frequency• TL-WPA8631P: 2.4 GHz and 5 GHz
• TL-PA8010P: N/A
Signal Rate• TL-WPA8631P: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
• TL-PA8010P: N/A
SOFTWARE FEATURES
Mesh TechnologyEasyMesh-Compatible
Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.
Learn More>
All EasyMesh Products>
Quality of Service• ToS
• Supports up to 4-level type QoS
• Support up to 8-level VLAN priority field
SecurityWireless: WPA-PSK/WPA2-PSK, WEP Encryptions,
Powerline: 128-bit AES Encryption
ManagementTP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download
Modulation TechnologyOFDM
IGMPIGMP v1/v2/v3
PHYSICAL
Dimensions (W×D×H)• TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)
• TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)
Package Contents• AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P;
• 2× Ethernet Cables;
• 1× Quick Installation Guide
OTHERS
CertificationCE, RoHS
Package ContentsAV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT:
1× TL-WPA8631P, 1× TL-PA8010P;
2× Ethernet Cables;
1× Quick Installation Guide
System RequirementsSystem Requirements:
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
