Tp-Link Outdoor Wifi Booster | CPE510

Features

• Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 23dBm/200mw
• System-level optimizations for more than 15km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

TP-Link’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 15km+, tested in the field."

TP-Link MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Pharos Control

Centralized Management System - CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

User-friendly web-based management system allows professionals to do more specific configurations.

Specification

• Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash

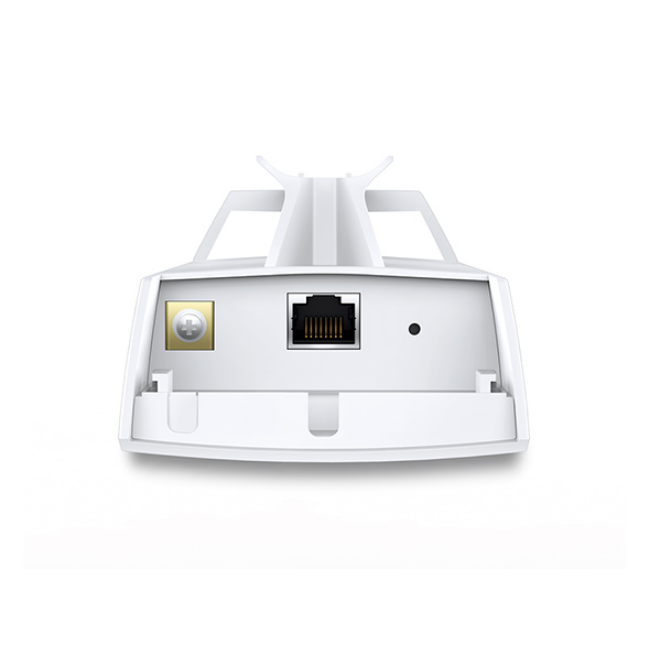

• Interface: 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset Button
• Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range: 16-27VDC
• Power Consumption: 9.8 Watts Max
• Dimensions ( W x D x H ): 224 x 79 x 60 mm
• Antenna Type: Built-in 13dBi 2x2 Dual-polarized Directional Antenna
• Protection: 15KV ESD Protection, 6KV Lightning Protection
• Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)
• Wireless Speeds: Up to 300Mbps (40MHz,Dynamic), Up to 144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps (10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)
• Frequency: 5.15~5.85GHz
• Transmission Power: 26dBm/398mw (Adjustable power by 1dBm)
• System Tools: Wireless Signal Quality Indicators:, Signal Strength/Noise/Transmit CCQ/CPU/Memory, Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP, Spectrum Analyzer, Speed Test, Ping, Traceroute
• System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications, Hardware watch dog
• Dimensions(W x D x H): 110*57*33.5mm
• Interfaces: 1 AC Jack with Earth Ground, 1 10/100Mbps Shielded Ethernet Port (Power + Data), 1 10/100Mbps Shielded Ethernet Port (Data)
• Button: Remote Reset Button
• Input: 100-240VAC, 50/60Hz
• Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. "

What's in the Box

• Outdoor Wireless CPE
• 24V 0.5A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide
